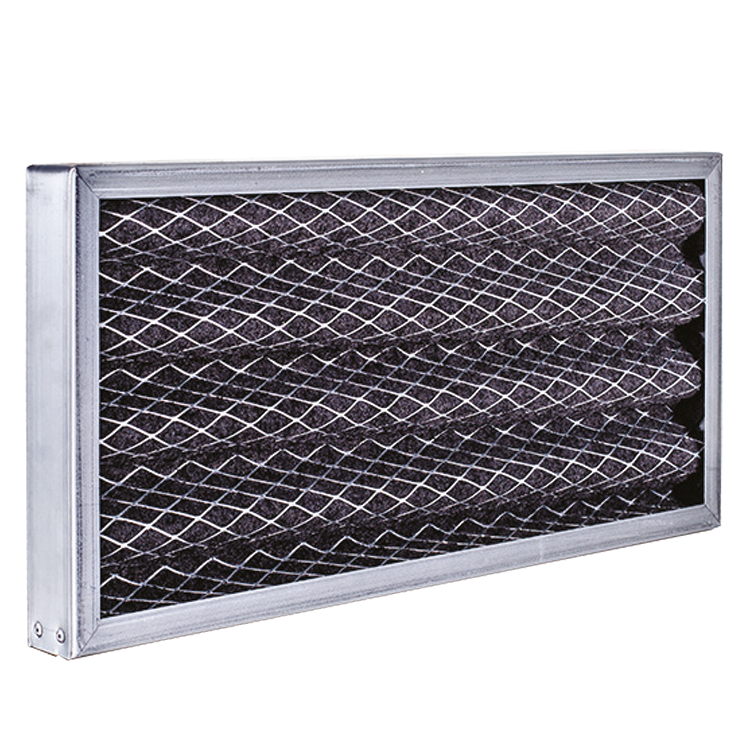

AC Z Type Panel
Safe Air Activated Carbon Cassette Filters provide effective air purification, designed for industrial and commercial use to absorb unwanted odors, gases, and chemical vapors.
Check out the productA carbon cassette is a shallow carbon stage in a panel frame. It is the format most often used to add gas-phase filtration to a system that was not built with it, because it fits the depth a panel filter already occupies.
Where This Format Fits
Retrofit. Where an existing housing has a panel filter slot, a carbon cassette can usually occupy it without modifying the unit.
Shallow housings. Kitchen exhaust hoods, compact air handling units and ventilation runs with little depth available.
Moderate gas loads. A shallow bed holds less carbon than a compact or cartridge format. Less carbon means shorter service life at the same gas load, and less contact time at the same airflow.
That last point is the limit of the format. If the gas load is high or the airflow is high relative to the depth available, a cassette will saturate quickly or pass gas because contact time is too short. In that case the compact or cartridge format is the right answer, even though it needs more depth.
Contact Time Is the Constraint
Adsorption needs the air to spend time in the carbon. In a shallow cassette, the bed depth is fixed by the frame, so contact time depends entirely on the face velocity.
This means a carbon cassette that works at one airflow may not work at a higher one in the same housing — not because the carbon is worse, but because the air is passing through faster. Tell us the design airflow with the dimensions, and we will tell you whether the available depth is sufficient for the duty.
What to Send
Which compound you need to remove · approximate inlet concentration if measured · design airflow with units · available housing depth · width × height with units, and whether those are filter or housing dimensions · operating temperature and humidity · whether a particle filter is fitted upstream · operating hours · quantity and estimated annual quantity.
For the current product see AC Z type panel. For the shallow particle stage that should protect it, see panel filters. Our guide on activated carbon cassette filters and how odour and gas removal works covers the construction in more detail.
