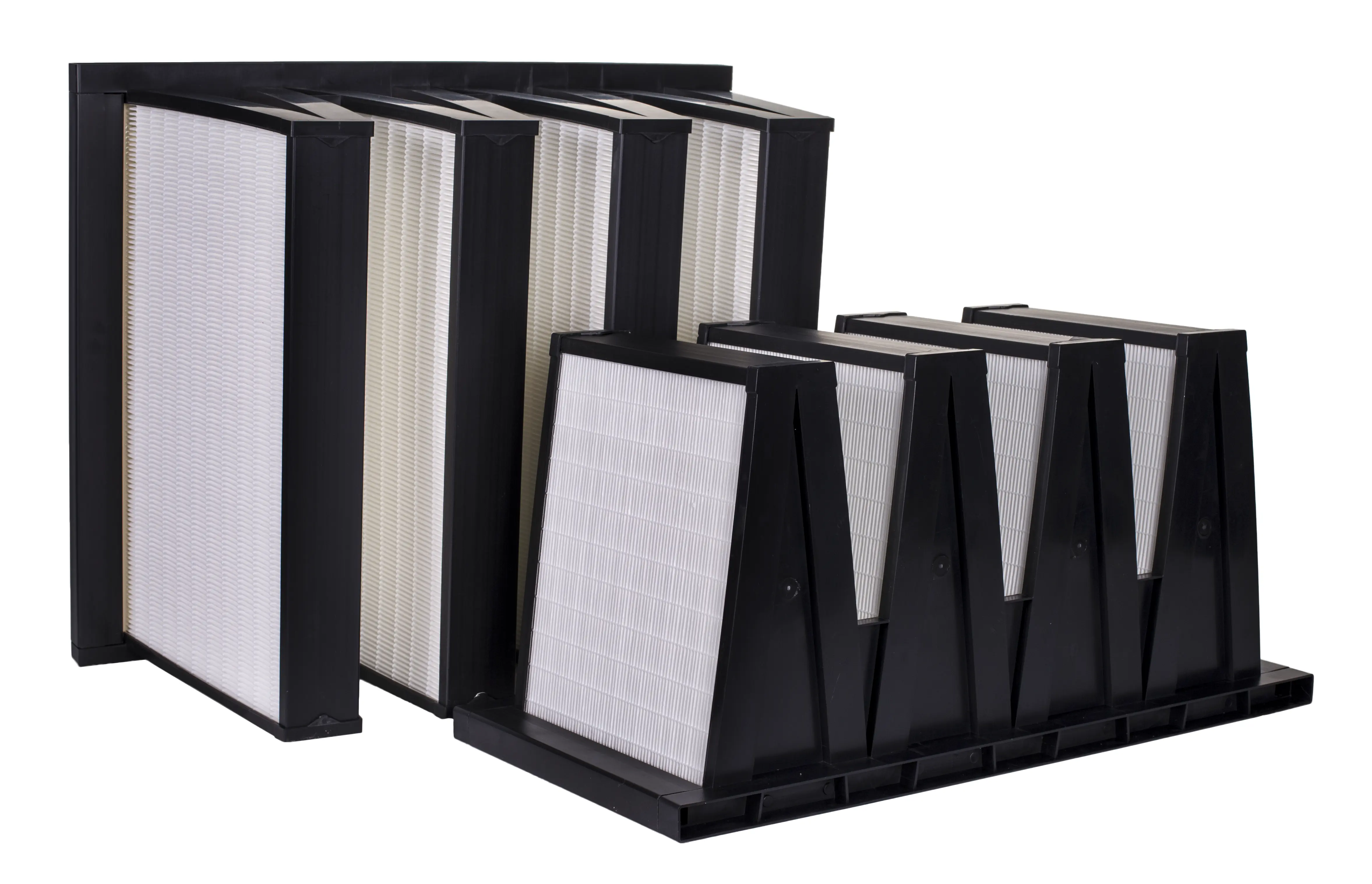

Compact Filter (W Compact Filter)
STD 14M2
| Product Code | Class EN779 | Class ISO16890 | Width (m) | Height (mm) | Depth (mm) | Filtration Area (m²) | Nominal Airflow (m³/h) | Initial Pressure Drop (±10% Pa) |
| VC-6-287-592-S | M6 | ePM10 70% | 287 | 592 | 292 | 7,00 | 1700 | 80 |
| VC-6-490-592-S | M6 | ePM10 70% | 490 | 592 | 292 | 11,00 | 2800 | 80 |
| VC-6-592-592-S | M6 | ePM1 60% | 592 | 592 | 292 | 14,00 | 3400 | 80 |
| VC-7-287-592-S | F7 | Epm2,5 70% | 287 | 592 | 292 | 7,00 | 1700 | 100 |
| VC-7-490-592-S | F7 | Epm2,5 70% | 490 | 592 | 292 | 11,00 | 2800 | 100 |
| VC-7-592-592-S | F7 | Epm2,5 70% | 592 | 592 | 292 | 14,00 | 3400 | 100 |
| VC-8-287-592-S | F8 | ePM1 80% | 287 | 592 | 292 | 7,00 | 1700 | 120 |
| VC-8-490-592-S | F8 | ePM1 80% | 490 | 592 | 292 | 11,00 | 2800 | 120 |
| VC-8-592-592-S | F8 | ePM1 80% | 592 | 592 | 292 | 14,00 | 3400 | 120 |
| VC-9-287-592-S | F9 | ePM1 85% | 287 | 592 | 292 | 7,00 | 1700 | 135 |
| VC-9-490-592-S | F9 | ePM1 85% | 490 | 592 | 292 | 11,00 | 2800 | 135 |
| VC-9-592-592-S | F9 | ePM1 85% | 592 | 592 | 292 | 14,00 | 3400 | 135 |
PRO 18M2
| Product Code | Class EN779 | Class ISO16890 | Width (m) | Height (mm) | Depth (mm) | Filtration Area (m²) | Nominal Airflow (m³/h) | Initial Pressure Drop (±10% Pa) |
| VC-6-287-592-P | M6 | ePM10 70% | 287 | 592 | 292 | 9,00 | 1700 | 65 |
| VC-6-490-592-P | M6 | ePM10 70% | 490 | 592 | 292 | 15,00 | 2800 | 65 |
| VC-6-592-592-P | M6 | ePM10 70% | 592 | 592 | 292 | 18,00 | 3400 | 65 |
| VC-7-287-592-P | F7 | Epm2,5 70% | 287 | 592 | 292 | 9,00 | 1700 | 80 |
| VC-7-490-592-P | F7 | Epm2,5 70% | 490 | 592 | 292 | 15,00 | 2800 | 80 |
| VC-7-592-592-P | F7 | Epm2,5 70% | 592 | 592 | 292 | 18,00 | 3400 | 80 |
| VC-8-287-592-P | F8 | ePM1 80% | 287 | 592 | 292 | 9,00 | 1700 | 95 |
| VC-8-490-592-P | F8 | ePM1 80% | 490 | 592 | 292 | 15,00 | 2800 | 95 |
| VC-8-592-592-P | F8 | ePM1 80% | 592 | 592 | 292 | 18,00 | 3400 | 95 |
| VC-9-287-592-P | F9 | ePM1 85% | 287 | 592 | 292 | 9,00 | 1700 | 110 |
| VC-9-490-592-P | F9 | ePM1 85% | 490 | 592 | 292 | 15,00 | 2800 | 110 |
| VC-9-592-592-P | F9 | ePM1 85% | 592 | 592 | 292 | 18,00 | 3400 | 110 |
Compact Filter (W Compact Filter)
SafeAir W Compact Filter offers advanced filtration with high efficiency and durability. Its “W” compact design provides an expanded surface area, allowing high airflow and energy savings. These filters are ideal for critical air quality environments like cleanrooms, laboratories, hospitals, and industrial facilities. With a sturdy frame, they resist deformation and offer a high particle retention capacity.
Applications of W Compact Filters
W Compact Filters are widely used in HVAC systems, pharmaceutical production, food industry, hospitals, and microelectronics, ensuring optimal indoor air quality.
Advantages
- High Efficiency: Ensures superior air quality by capturing fine particles.
- Energy Savings: Low pressure drop reduces energy costs.
- Durable Structure: Sturdy frame provides longevity and deformation resistance.
- Easy Installation: Compact design fits easily into various spaces.
Boost Air Quality with SafeAir W Compact Filters!
For precision air filtration, choose SafeAir W Compact Filters for superior indoor air quality.
Filter Material Minipleat Micro Glass Fibre Frame Material Plastic Header Thickness 25 mm Class (EN779:2012) M5 - F9 Class (ISO 16890) ePM1, ePM2,5 ePM10 Gasket Optional (Polyurethane / EPDM) Separator Hotmelt Filler Material 2K Polyurethane Initial Pressure Drop 450 Pa Maximum Temperature 70 °C Maximum Humidity 90%
